Dynamic Attribute
# Dynamic Attribute
# Description
Renders correct control based on selected Attribute Definition. It also validates inputs and stores them in binded fields.
NOTE: There is no separate solution for this PCF, it can be imported as part of Dinamic Attribute Grid PCF
# Outputs
User input is stored in bindingField
attribute as serialized JSON and in one of the corresponding bindings for Attribute Data Type.
# Features
- Dynamically renders Base control based on bound Attribute Definition record supported data types
- Input validation is handled based on Attribute Definition record
- Stores the user input in both
bindingField
and corresponding binding for datatype
# Visual Example
As Dynamic Attribute PCF is using NestedControlRenderer for fetching appropriate Base Control, this control will look the same as the corresponding base control.
# Example of valid control input

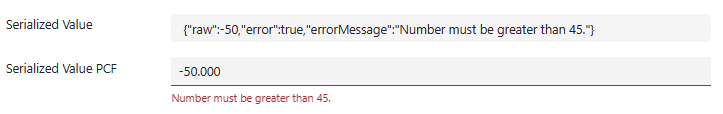

# Example of invalid control input
# Bindings
Binding | Type | Usage | Description |
---|---|---|---|
bindingField | SingleLine.Text , SingleLine.TextArea , Multiple | bound (required) | Serialized value |
attributeDefinition | Lookup.Simple | bound | Attribute Definition lookup |
metadata | Multiple | input | Static metadata with prefetched attribute definition object for PCF in Grid |
textField | SingleLine.Text | bound | Text Field Output |
integerField | Whole.None | bound | Integer Field Output |
decimalField | Decimal | bound | Decimal Field Output |
optionsetField | Lookup.Simple | bound | Optionset Lookup Field Output |
booleanField | TwoOptions | bound | Boolean Field Output |
datetimeUserLocalField | DateAndTime.DateAndTime | bound | DateTime User Local Field Output |
datetimeTZIField | DateAndTime.DateAndTime | bound | DateTime Time Zone independent Field Output |
dateField | DateAndTime.DateOnly | bound | Date Field Output |
# Metadata binding
PCF can work in two modes:
- Sync - By providing Attribute definition object via
metadata
property - Async - By binding to Attribute definition lookup via
attributeDefinition
property
If object is passed to metadata
property, control will ignore attributeDefinition
binding. Sync approach is mainly developed for Grid usage to avoid numerous API requests.
# Example of metadata binding
{
"talxis_text_maxcharcount": null,
"talxis_text_default": null,
"talxis_decimal_min": null,
"talxis_name": "Eye Color",
"talxis_int_min": null,
"talxis_datetime_userlocal_default": null,
"talxis_int_max": null,
"talxis_date_default": null,
"talxis_decimal_default": null,
"talxis_int_default": null,
"talxis_decimal_precision": null,
"talxis_decimal_max": null,
"talxis_datatypetypecode": 742070003,
"talxis_bit_default": null,
"_talxis_choice_default_value": null,
"talxis_datetime_tzi_default": null,
"talxis_attributedefinitionid": "76c21797-9c30-f011-8c4d-000d3a26a0db",
"talxis_choice_default": null,
"talxis_talxis_attributedefinition_talxis_attributeoption_attributedefinitionid": [
{
"talxis_attributeoptionid": "bc5b6352-2fdb-4688-acba-c648027f5601",
"talxis_value": 1,
"talxis_name": "Brown",
"talxis_talxis_attributeoption_talxis_attributeoptionlabel_attributeoptionid": [
{
"_talxis_attributeoptionid_value": "bc5b6352-2fdb-4688-acba-c648027f5601",
"talxis_name":"Brown",
"talxis_language": "1033"
},
{
"_talxis_attributeoptionid_value": "bc5b6352-2fdb-4688-acba-c648027f5601",
"talxis_name":"Hnědá",
"talxis_language": "1029"
}
]
},
{
"talxis_attributeoptionid": "f711658f-b92f-4140-895e-835f626f8ff8",
"talxis_value": 2,
"talxis_name": "Blue",
"talxis_talxis_attributeoption_talxis_attributeoptionlabel_attributeoptionid": [
{
"_talxis_attributeoptionid_value": "f711658f-b92f-4140-895e-835f626f8ff8",
"talxis_name":"Blue",
"talxis_language": "1033"
},
{
"_talxis_attributeoptionid_value": "f711658f-b92f-4140-895e-835f626f8ff8",
"talxis_name":"Modrá",
"talxis_language": "1029"
}
]
}
]
}
