Gallery Grid

Gallery Grid is a dataset PCF that can be directly bound to Subgrid and Homepage grid. It is necessary to follow the correct configuration for the control to work properly.

IMPORTANT

Control is not compatible with TALXIS Portal solutions as of now!

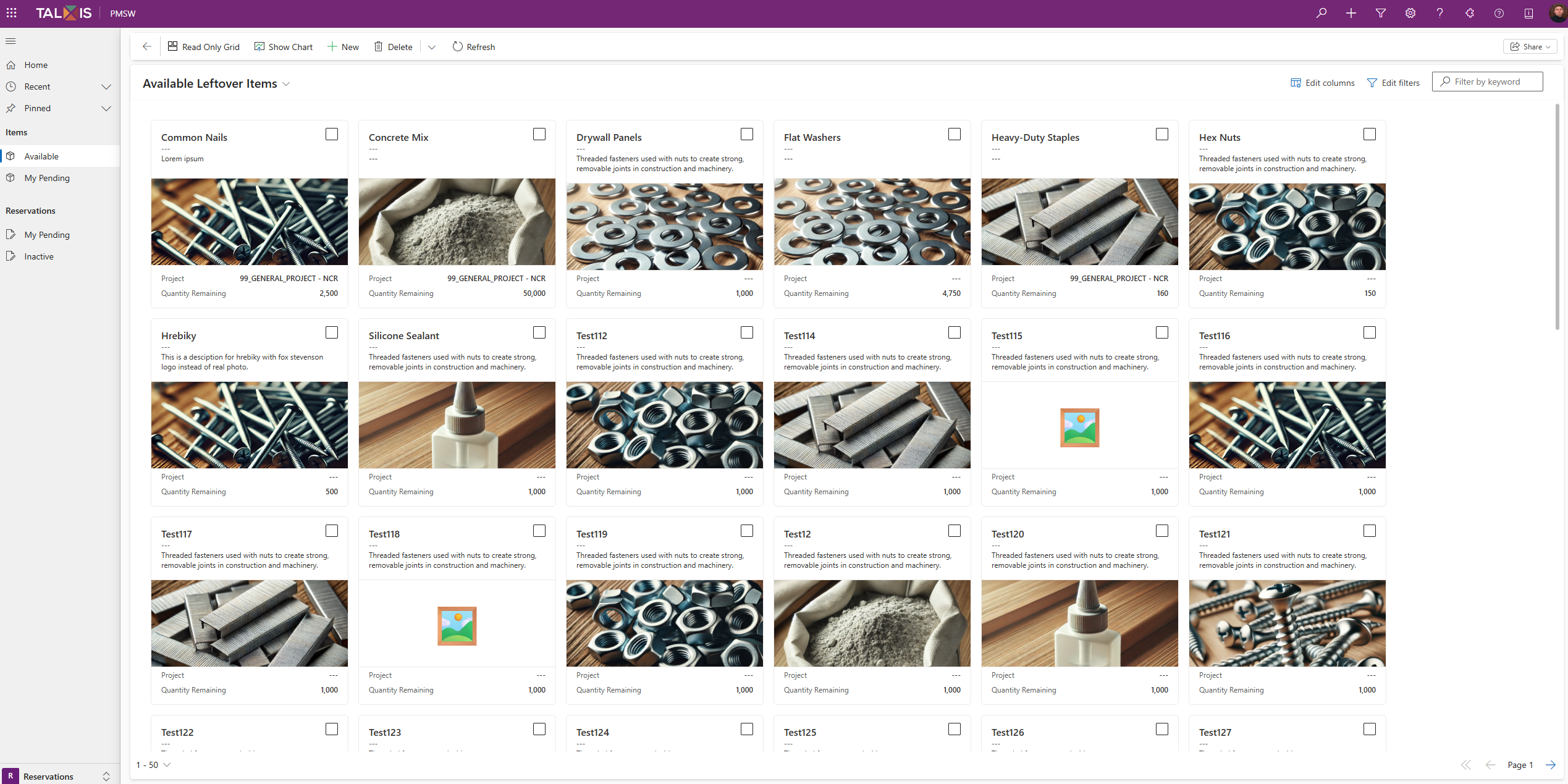

The control displays records from the grid as cards, showing a preview image, title, subtitle, and description in the header, and columns in the footer. All of these are configurable through control parameters.

Features

All basic grid features should still work, such as ribbon buttons, search, and Edit Filters.

Note: Edit Columns cannot be hidden. Users can change these columns, but it will have no effect. You can navigate to the main form by double-clicking a card.

Binding Parameters

Note: The columns parameter definition must always include an image attribute!

Display Name	Name	Required	Type	Description
Sample Data Set	sampleDataSet	Yes	dataset	Dataset binding
Columns	columns	Yes	Multiple	JSON array containing the column definitions. Must include image column! These columns will be merged with the existing grid columns to ensure they're always present.
Title Attribute	title	Yes	Singleline.Text	Logical name of the attribute used for the title.
Subtitle Attribute	subtitle	No	Singleline.Text	Logical name of the attribute used for the subtitle. No subtitle will be shown if left empty.
Description Attribute	description	No	Singleline.Text	Logical name of the attribute used for the description. No description will be shown if left empty.
Footer Attributes	footerAttributes	No	Singleline.Text	Comma-separated logical names of attributes to be displayed in the footer. No footer will be shown if empty.

Example of columns definition:

[{ "name": "ntg_photo", "dataType": "Image" },{ "name": "ntg_name", "dataType": "SingleLine.Text" },{ "name": "ntg_categoryid", "dataType": "OptionSet" },{ "name": "ntg_description", "dataType": "Multiple" },{ "name": "ntg_projectid", "dataType": "Lookup.Simple" },{ "name": "ntg_quantityremaining", "dataType": "Decimal" }]

Example of binding on an entity:

  <CustomControlDefaultConfigs>
    <CustomControlDefaultConfig>
      <ControlDescriptionXML>
        <controlDescriptions>
          <controlDescription>
            <customControl id="{E7A81278-8635-4d9e-8D4D-59480B391C5B}">
              <parameters />
            </customControl>
            <customControl name="talxis_TALXIS.GalleryGrid" formFactor="0">
              <parameters>
                <data-set name="sampleDataSet">
                </data-set>
                <columns type="Multiple" static="true">[{ "name": "ntg_photo", "dataType": "Image" },{ "name": "ntg_name", "dataType": "SingleLine.Text" },{ "name": "ntg_categoryid", "dataType": "OptionSet" },{ "name": "ntg_description", "dataType": "Multiple" },{ "name": "ntg_projectid", "dataType": "Lookup.Simple" },{ "name": "ntg_quantityremaining", "dataType": "Decimal" }]</columns>
                <title type="SingleLine.Text" static="true">ntg_name</title>
                <subtitle type="SingleLine.Text" static="true">ntg_categoryid</subtitle>
                <description type="SingleLine.Text" static="true">ntg_description</description>
                <footerAttributes type="SingleLine.Text" static="true">ntg_projectid,ntg_quantityremaining</footerAttributes>
              </parameters>
            </customControl>
            <customControl name="talxis_TALXIS.GalleryGrid" formFactor="1">
              <parameters>
                <data-set name="sampleDataSet">
                </data-set>
                <columns type="Multiple" static="true">[{ "name": "ntg_photo", "dataType": "Image" },{ "name": "ntg_name", "dataType": "SingleLine.Text" },{ "name": "ntg_categoryid", "dataType": "OptionSet" },{ "name": "ntg_description", "dataType": "Multiple" },{ "name": "ntg_projectid", "dataType": "Lookup.Simple" },{ "name": "ntg_quantityremaining", "dataType": "Decimal" }]</columns>
                <title type="SingleLine.Text" static="true">ntg_name</title>
                <subtitle type="SingleLine.Text" static="true">ntg_categoryid</subtitle>
                <description type="SingleLine.Text" static="true">ntg_description</description>
                <footerAttributes type="SingleLine.Text" static="true">ntg_projectid,ntg_quantityremaining</footerAttributes>
              </parameters>
            </customControl>
            <customControl name="talxis_TALXIS.GalleryGrid" formFactor="2">
              <parameters>
                <data-set name="sampleDataSet">
                </data-set>
                <columns type="Multiple" static="true">[{ "name": "ntg_photo", "dataType": "Image" },{ "name": "ntg_name", "dataType": "SingleLine.Text" },{ "name": "ntg_categoryid", "dataType": "OptionSet" },{ "name": "ntg_description", "dataType": "Multiple" },{ "name": "ntg_projectid", "dataType": "Lookup.Simple" },{ "name": "ntg_quantityremaining", "dataType": "Decimal" }]</columns>
                <title type="SingleLine.Text" static="true">ntg_name</title>
                <subtitle type="SingleLine.Text" static="true">ntg_categoryid</subtitle>
                <description type="SingleLine.Text" static="true">ntg_description</description>
                <footerAttributes type="SingleLine.Text" static="true">ntg_projectid,ntg_quantityremaining</footerAttributes>
              </parameters>
            </customControl>
          </controlDescription>
        </controlDescriptions>
      </ControlDescriptionXML>
      <IntroducedVersion>1.0</IntroducedVersion>
    </CustomControlDefaultConfig>
  </CustomControlDefaultConfigs>
